TDD Touch TDD-PTM-PM215HO

21.5’’ Outdoor Panel Mount (Front Mount) Open Frame PCAP Touch Monitors

Features:

    ● Touch thru glass (with AG, UV Filter & Anti-mist Optical Bonding) enabled with PCAP supports thickness up
    to 5mm

    ● Embedded design with Rugged High Bright TFT Panel&Auto-dimmer, Sturdy Aluminum Front Panel&Steel Back

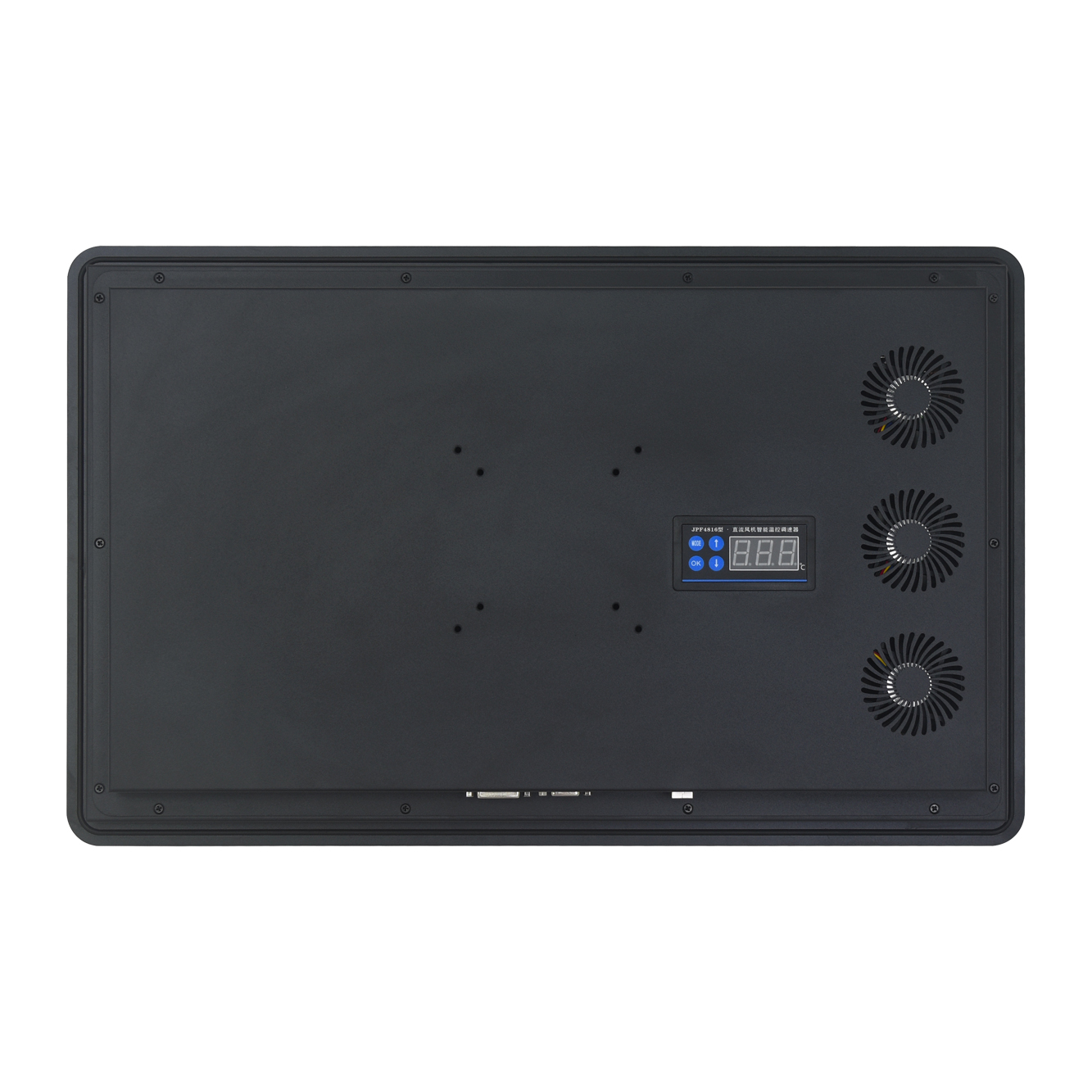

    ● IP65 (front) for water and Dust Protection with Smart Fans, flexible mounting in any table, kiosk, or cabinet
    design

SKU: TDD-PTM-PM185HO Category: Tags: , Brand:

Description

TDD-PTM-PM185HO

The TDD Touch Monitors include Standard, Industrial (Open Frame Bezel-free | Rear Mount, Panel Mount, Closed Frame), Outdoor, Waterproof, Stainless Steel, Marine, Curved, Desktop POS, Commercial Displays, Medical and Custom types, delivers an industrial, reliable and cost-effective solution with outstanding image clarity & accurate touch response for OEMs & systems integrators. 7-98’’ sizes with rugged bezel, flat structure, high durability and versatility for Kiosks applications from Self-service, Automated Parking, Industrial Automation, Outdoor Control, Healthcare to Gaming.

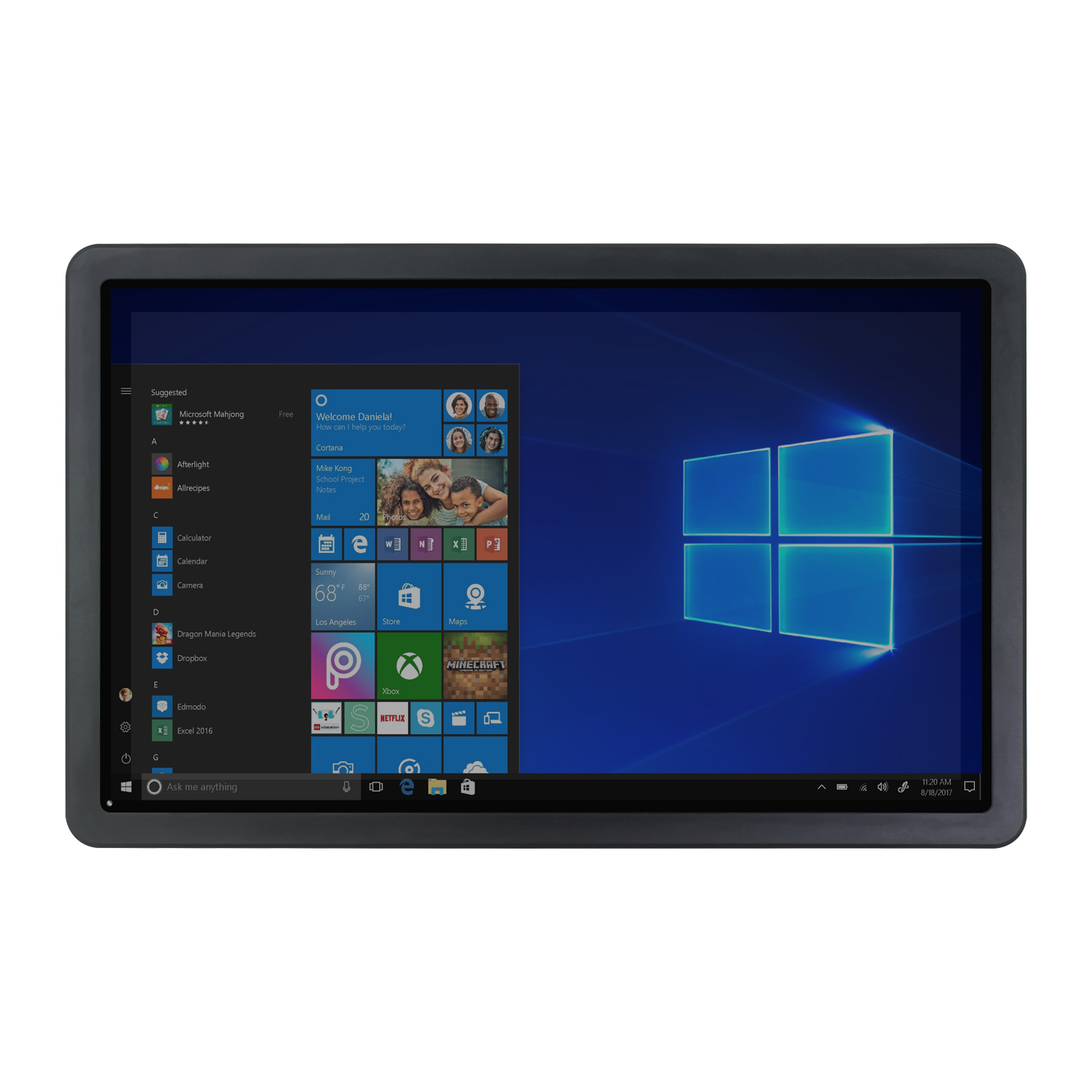

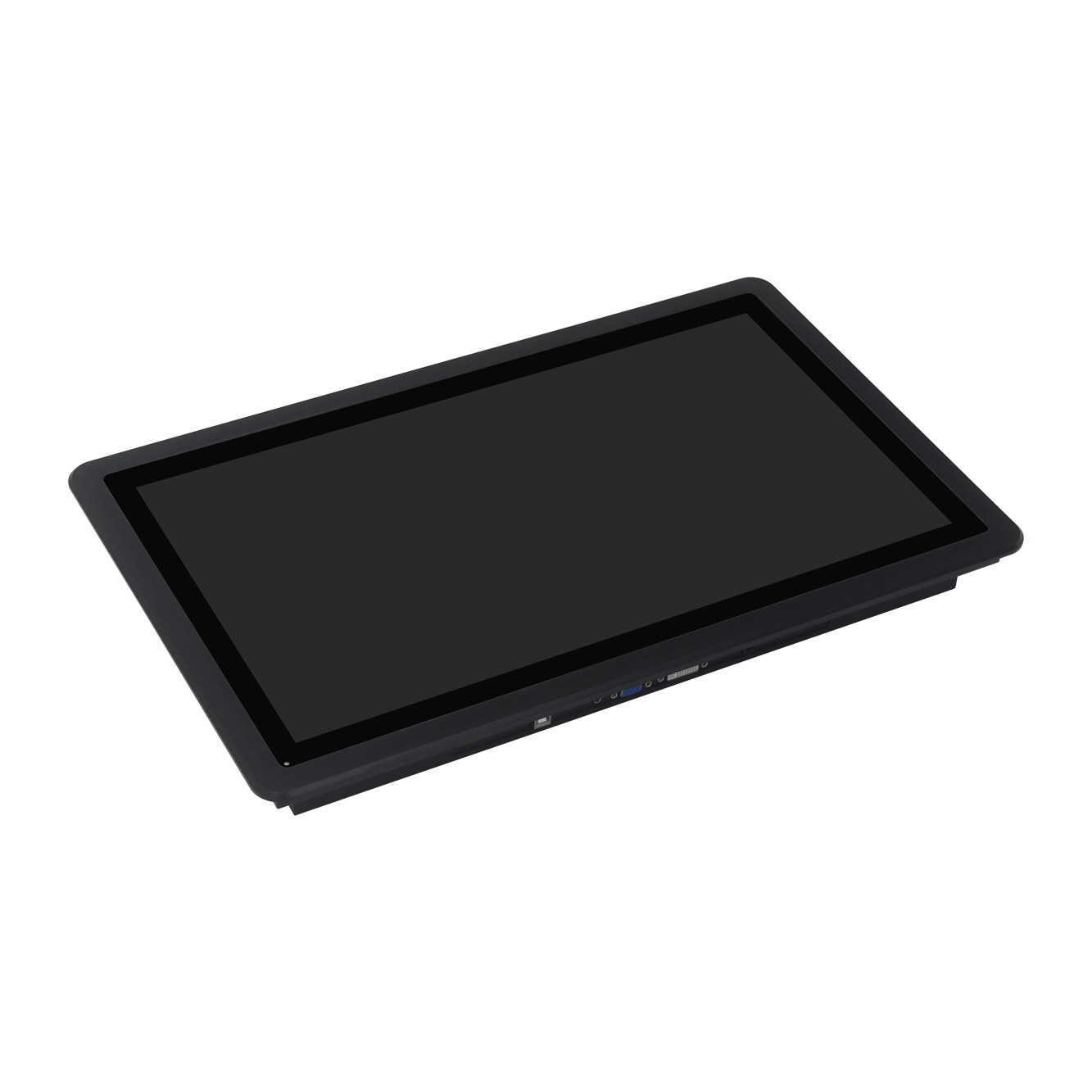

TDD Touch TDD-PTM-PM185HO

18.5’’ Outdoor Panel Mount (Front Mount) Open Frame PCAP Touch Monitors
    TDD-PTM-PM185HO Specifications

    Panel

    Diagonal Size

    18.5"(16:9), 46.99cm, Active matrix TFT LCD (LED)

    Active Area (mm)

    409.8 mm x 230.4 mm

    Resolution

    1366 x 768

    Viewing Angle

    Horizontal: 89° or 178° total / Vertical: 89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    1000 nits

    Response Time-total

    14 (Typ.)(G to G) ms

    Contrast Ratio

    1000:1

    Input Video Frequency

    Horizontal: 30 - 60 KHz / Vertical: 50 - 75 Hz

    Touch

    Touch Technology

    PCAP (Projected Capacitive) - 10 Touch Capacity (Optional: Waterproof Firmware)

    Surface Treatment

    Water, Dust & Vandal proof; Optional: Anti-glare, Anti-fingerprint, Anti-smudge, Anti-bacterial

    Supported OS

    Windows / Android / Linux / Mac

    Interfaces / Connectors / Controls

    Video Interfaces

    VGA x1 / HDMI x1 / DVI x1 (opt.) / Display Port x1 (opt.) / USB x1 for Touch; HDCP: Yes

    Connectors & Controls

    Audio Mini jack x1 / DC x1; 5 OSD buttons

    Power Supply / Consumption: 100-240 VAC / 12VDC +/- 5%; 20W typical, 1.5W sleep, 0.5W off

    Mechanical

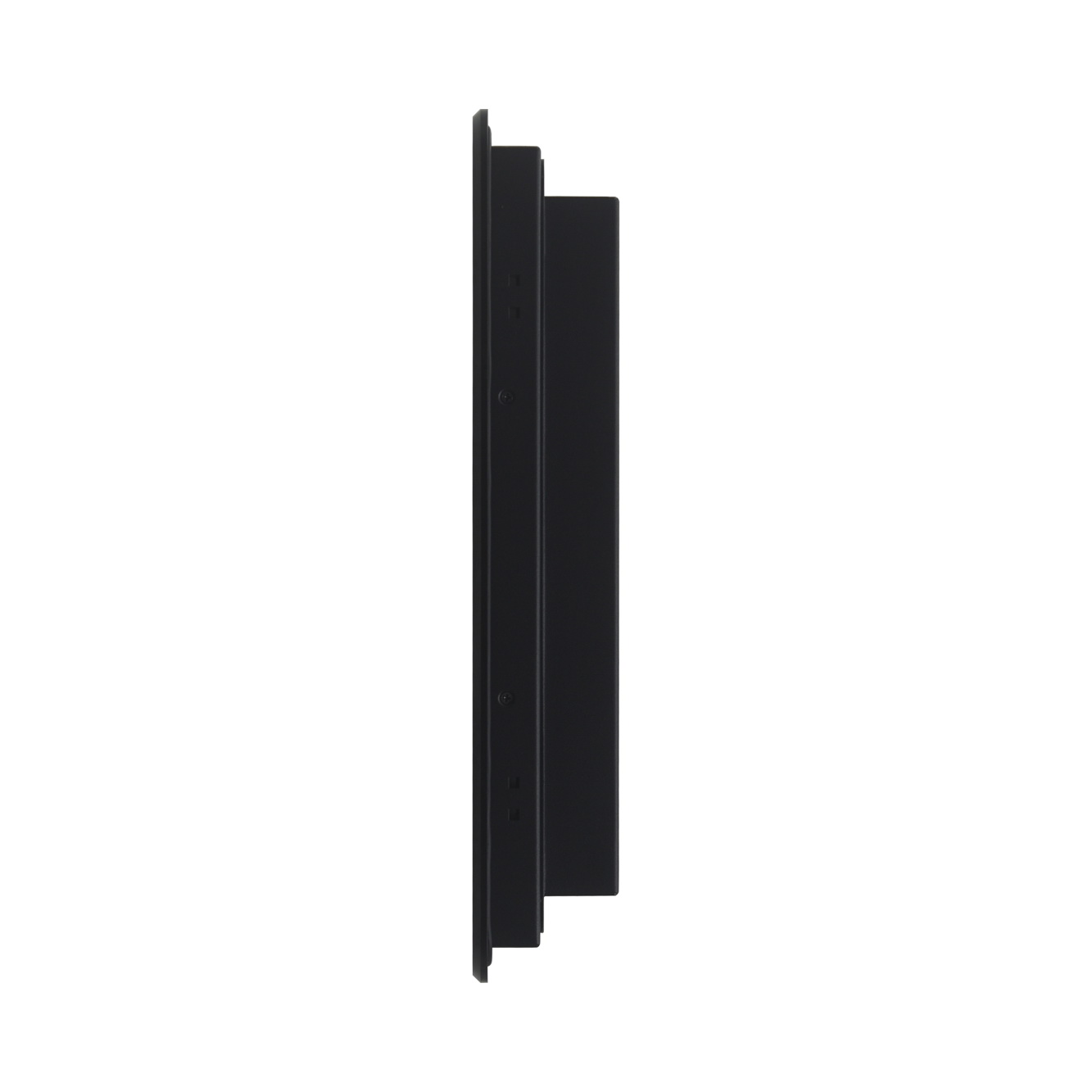

    Product Dimensions: 454 x 277 x 40mm / Weight (Unpacked / Packed): 6.7 / 8.5kg

    Box Dimensions: 530 x 160 x 350mm / VESA Mounting: 75 x 75 / 100 x 100mm

    Environmental

    Operating / Storage Temperature: -20°C to 70°C / -30°C to 80°C (except for some models)

    Accessories

    Power adapter / cable, HDMI / VGA / Touch USB cable, panel mount kits w/screws (opt.)

    Others

    MTBF / Warranty / Enclosure Color: 50,000 hours demonstrated / 1-year / black | silver

    Ready for Use: 24/7
