Description

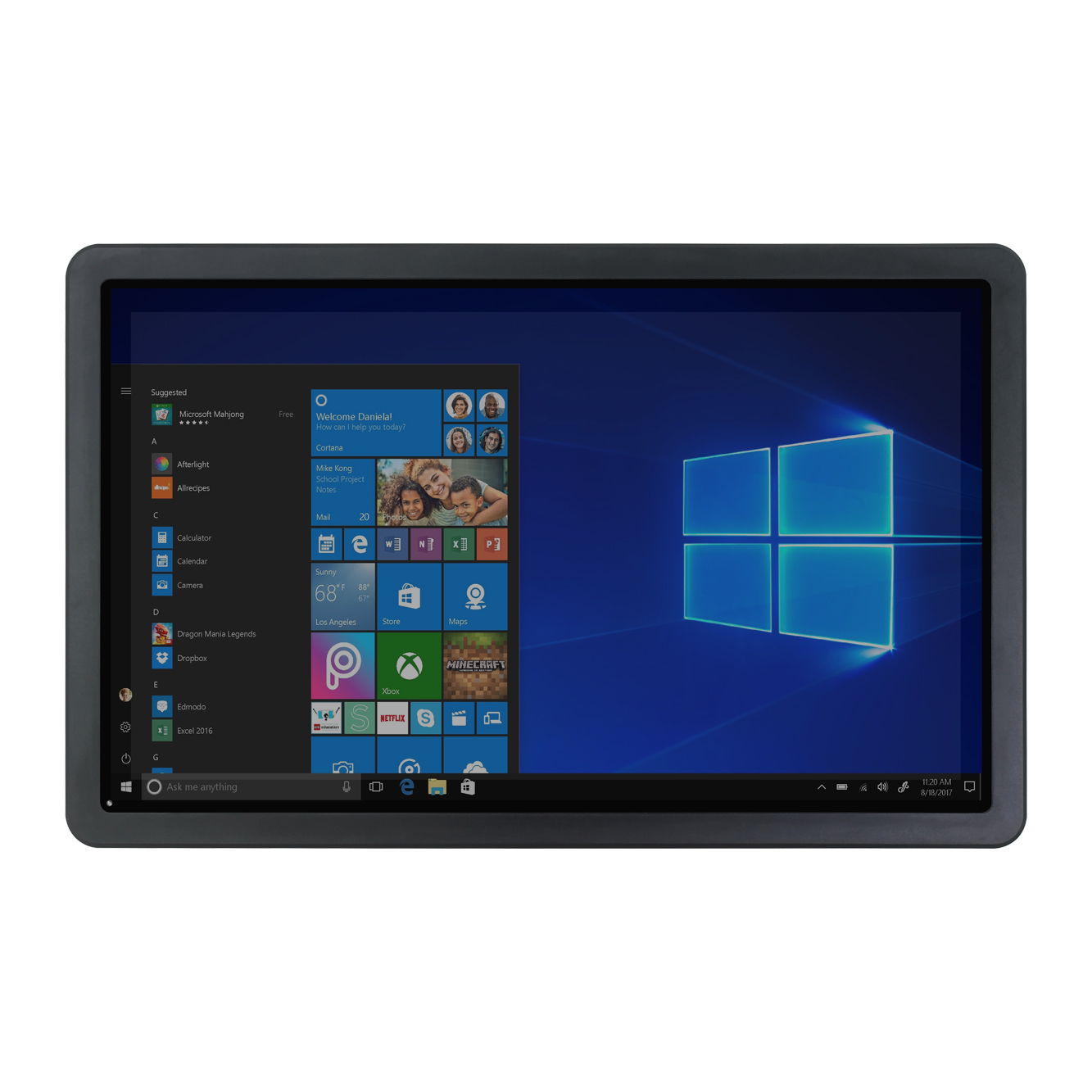

TDD Touch TDD-PTM-PM238HO
23.8’’ Outdoor Panel Mount (Front Mount) Open Frame PCAP Touch MonitorssPanel
|
Diagonal Size |
23.8"(16:9), 60.5cm, Active matrix TFT LCD (LED) |
|
Active Area (mm) |
527.04 mm x 296.46 mm |
|
Resolution |
1920 x 1080 |
|
Viewing Angle |
Horizontal: 89° or 178° total / Vertical: 89° or 178° total |
|
Number of Colors |
16.7 million |
|
Brightness (typical) |
800 nits |
|
Response Time-total |
14 (Typ.)(G to G) ms |
|
Contrast Ratio |
1000:1 |
|
Input Video Frequency |
Horizontal: 30 - 60 KHz / Vertical: 50 - 75 Hz |
TDD-PTM-PM238HO Touch
|
Touch Technology |
PCAP (Projected Capacitive) - 10 Touch Capacity (Optional: Waterproof Firmware) |
|
Surface Treatment |
Water, Dust Vandal proof; Optional: Anti-glare, Anti-fingerprint, Anti-smudge, Anti-bacterial |
|
Supported OS |
Windows / Android / Linux / Mac |
Interfaces / Connectors / Controls
|
Video Interfaces |
VGA x1 / HDMI x1 / DVI x1 (opt.) / Display Port x1 (opt.) / USB x1 for Touch; HDCP: Yes |
|
Connectors Controls |
Audio Mini jack x1 / DC x1; 5 OSD buttons |
Power Supply / Consumption: 100-240 VAC / 12VDC +/- 5%; 25W typical, 1.5W sleep, 0.5W off
|
Mechanical |
Product Dimensions: 574.2 x 366.6 x 43.4mm / Weight (Unpacked / Packed): 10.6 / 11.6kg Box Dimensions: 650 x 160 x 430mm / VESA Mounting: 75 x 75 / 100 x 100mm |
|
Environmental |
Operating / Storage Temperature: -20°C to 70°C / -30°C to 80°C (except for some models) |
|
Accessories |
Power adapter / cable, HDMI / VGA / Touch USB cable, panel mount kits w/screws (opt.) |
|
Others |
MTBF / Warranty / Enclosure Color: 50,000 hours demonstrated / 1-year / black | silver Ready for Use: 24/7 |
